向量量化变分自编码器

!pip install -q tensorflow-probability

import numpy as np
import matplotlib.pyplot as plt

from tensorflow import keras
from tensorflow.keras import layers
import tensorflow_probability as tfp
import tensorflow as tf

class VectorQuantizer(layers.Layer):
    def __init__(self, num_embeddings, embedding_dim, beta=0.25, **kwargs):
        super().__init__(**kwargs)
        self.embedding_dim = embedding_dim
        self.num_embeddings = num_embeddings

        # `beta` 参数最好保持在 [0.25, 2] 之间。
        self.beta = beta

        # 初始化我们将进行量化的嵌入。
        w_init = tf.random_uniform_initializer()
        self.embeddings = tf.Variable(
            initial_value=w_init(
                shape=(self.embedding_dim, self.num_embeddings), dtype="float32"
            ),
            trainable=True,
            name="embeddings_vqvae",
        )

    def call(self, x):
        # 计算输入的输入形状，然后在保持 `embedding_dim` 不变的情况下将输入展平。
        input_shape = tf.shape(x)
        flattened = tf.reshape(x, [-1, self.embedding_dim])

        # 量化。
        encoding_indices = self.get_code_indices(flattened)
        encodings = tf.one_hot(encoding_indices, self.num_embeddings)
        quantized = tf.matmul(encodings, self.embeddings, transpose_b=True)

        # 将量化值重新形状为原始输入形状
        quantized = tf.reshape(quantized, input_shape)

        # 计算向量量化损失并将其添加到层中。你可以在这里了解更多关于将损失添加到不同层的信息：
        # https://keras.io/guides/making_new_layers_and_models_via_subclassing/. 请查看
        # 原论文以了解损失函数的公式。
        commitment_loss = tf.reduce_mean((tf.stop_gradient(quantized) - x) ** 2)
        codebook_loss = tf.reduce_mean((quantized - tf.stop_gradient(x)) ** 2)
        self.add_loss(self.beta * commitment_loss + codebook_loss)

        # 直通估计器。
        quantized = x + tf.stop_gradient(quantized - x)
        return quantized

    def get_code_indices(self, flattened_inputs):
        # 计算输入与代码之间的 L2 归一化距离。
        similarity = tf.matmul(flattened_inputs, self.embeddings)
        distances = (
            tf.reduce_sum(flattened_inputs ** 2, axis=1, keepdims=True)
            + tf.reduce_sum(self.embeddings ** 2, axis=0)
            - 2 * similarity
        )

        # 推导最小距离的索引。
        encoding_indices = tf.argmin(distances, axis=1)
        return encoding_indices

def get_encoder(latent_dim=16):
    encoder_inputs = keras.Input(shape=(28, 28, 1))
    x = layers.Conv2D(32, 3, activation="relu", strides=2, padding="same")(
        encoder_inputs
    )
    x = layers.Conv2D(64, 3, activation="relu", strides=2, padding="same")(x)
    encoder_outputs = layers.Conv2D(latent_dim, 1, padding="same")(x)
    return keras.Model(encoder_inputs, encoder_outputs, name="encoder")


def get_decoder(latent_dim=16):
    latent_inputs = keras.Input(shape=get_encoder(latent_dim).output.shape[1:])
    x = layers.Conv2DTranspose(64, 3, activation="relu", strides=2, padding="same")(
        latent_inputs
    )
    x = layers.Conv2DTranspose(32, 3, activation="relu", strides=2, padding="same")(x)
    decoder_outputs = layers.Conv2DTranspose(1, 3, padding="same")(x)
    return keras.Model(latent_inputs, decoder_outputs, name="decoder")

def get_vqvae(latent_dim=16, num_embeddings=64):
    vq_layer = VectorQuantizer(num_embeddings, latent_dim, name="vector_quantizer")
    encoder = get_encoder(latent_dim)
    decoder = get_decoder(latent_dim)
    inputs = keras.Input(shape=(28, 28, 1))
    encoder_outputs = encoder(inputs)
    quantized_latents = vq_layer(encoder_outputs)
    reconstructions = decoder(quantized_latents)
    return keras.Model(inputs, reconstructions, name="vq_vae")


get_vqvae().summary()

class VQVAETrainer(keras.models.Model):
    def __init__(self, train_variance, latent_dim=32, num_embeddings=128, **kwargs):
        super().__init__(**kwargs)
        self.train_variance = train_variance
        self.latent_dim = latent_dim
        self.num_embeddings = num_embeddings

        self.vqvae = get_vqvae(self.latent_dim, self.num_embeddings)

        self.total_loss_tracker = keras.metrics.Mean(name="total_loss")
        self.reconstruction_loss_tracker = keras.metrics.Mean(
            name="reconstruction_loss"
        )
        self.vq_loss_tracker = keras.metrics.Mean(name="vq_loss")

    @property
    def metrics(self):
        return [
            self.total_loss_tracker,
            self.reconstruction_loss_tracker,
            self.vq_loss_tracker,
        ]

    def train_step(self, x):
        with tf.GradientTape() as tape:
            # VQ-VAE的输出。
            reconstructions = self.vqvae(x)

            # 计算损失。
            reconstruction_loss = (
                tf.reduce_mean((x - reconstructions) ** 2) / self.train_variance
            )
            total_loss = reconstruction_loss + sum(self.vqvae.losses)

        # 反向传播。
        grads = tape.gradient(total_loss, self.vqvae.trainable_variables)
        self.optimizer.apply_gradients(zip(grads, self.vqvae.trainable_variables))

        # 损失跟踪。
        self.total_loss_tracker.update_state(total_loss)
        self.reconstruction_loss_tracker.update_state(reconstruction_loss)
        self.vq_loss_tracker.update_state(sum(self.vqvae.losses))

        # 记录结果。
        return {
            "loss": self.total_loss_tracker.result(),
            "reconstruction_loss": self.reconstruction_loss_tracker.result(),
            "vqvae_loss": self.vq_loss_tracker.result(),
        }

(x_train, _), (x_test, _) = keras.datasets.mnist.load_data()

x_train = np.expand_dims(x_train, -1)
x_test = np.expand_dims(x_test, -1)
x_train_scaled = (x_train / 255.0) - 0.5
x_test_scaled = (x_test / 255.0) - 0.5

data_variance = np.var(x_train / 255.0)

vqvae_trainer = VQVAETrainer(data_variance, latent_dim=16, num_embeddings=128)
vqvae_trainer.compile(optimizer=keras.optimizers.Adam())
vqvae_trainer.fit(x_train_scaled, epochs=30, batch_size=128)

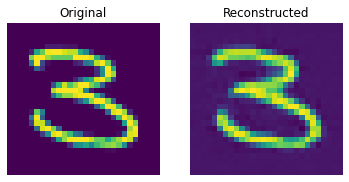

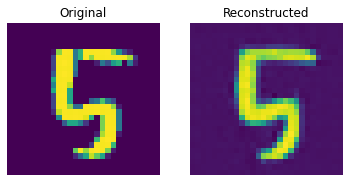

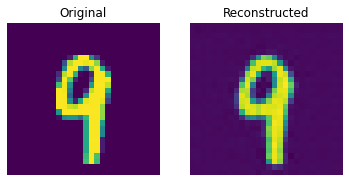

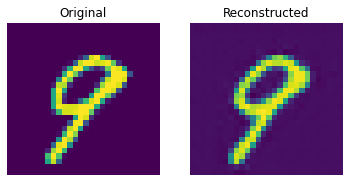

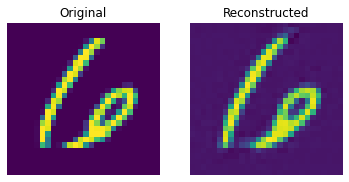

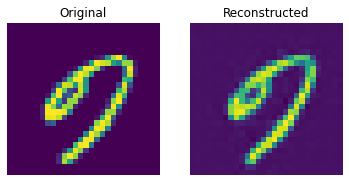

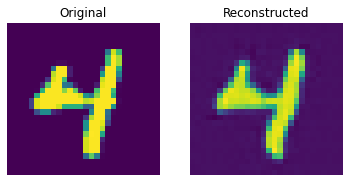

def show_subplot(original, reconstructed):
    plt.subplot(1, 2, 1)
    plt.imshow(original.squeeze() + 0.5)
    plt.title("原始图像")
    plt.axis("off")

    plt.subplot(1, 2, 2)
    plt.imshow(reconstructed.squeeze() + 0.5)
    plt.title("重建图像")
    plt.axis("off")

    plt.show()


trained_vqvae_model = vqvae_trainer.vqvae
idx = np.random.choice(len(x_test_scaled), 10)
test_images = x_test_scaled[idx]
reconstructions_test = trained_vqvae_model.predict(test_images)

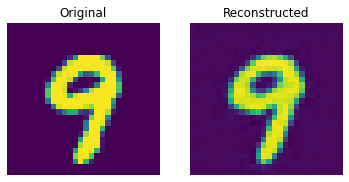

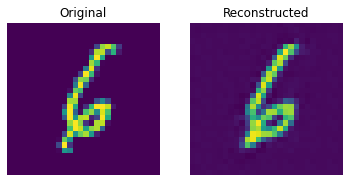

for test_image, reconstructed_image in zip(test_images, reconstructions_test):
    show_subplot(test_image, reconstructed_image)

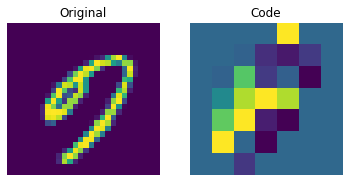

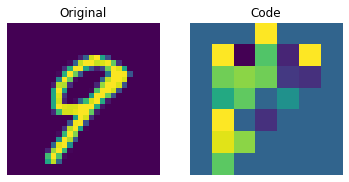

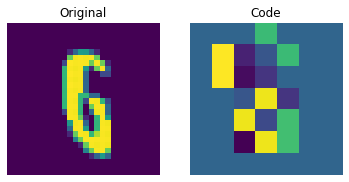

encoder = vqvae_trainer.vqvae.get_layer("encoder")
quantizer = vqvae_trainer.vqvae.get_layer("vector_quantizer")

encoded_outputs = encoder.predict(test_images)
flat_enc_outputs = encoded_outputs.reshape(-1, encoded_outputs.shape[-1])
codebook_indices = quantizer.get_code_indices(flat_enc_outputs)
codebook_indices = codebook_indices.numpy().reshape(encoded_outputs.shape[:-1])

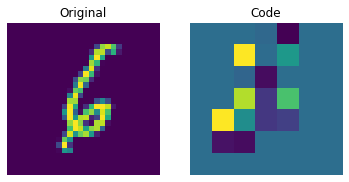

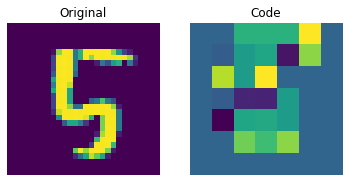

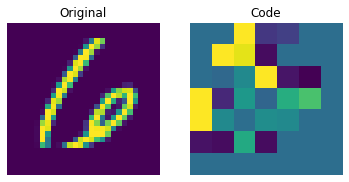

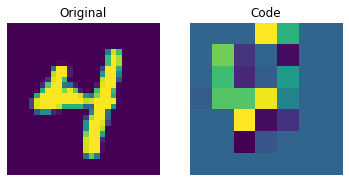

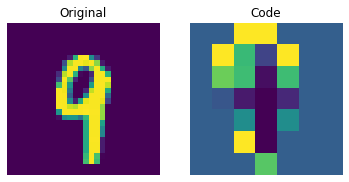

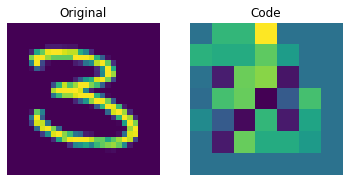

for i in range(len(test_images)):
    plt.subplot(1, 2, 1)
    plt.imshow(test_images[i].squeeze() + 0.5)
    plt.title("原始图像")
    plt.axis("off")

    plt.subplot(1, 2, 2)
    plt.imshow(codebook_indices[i])
    plt.title("代码")
    plt.axis("off")
    plt.show()

num_residual_blocks = 2
num_pixelcnn_layers = 2
pixelcnn_input_shape = encoded_outputs.shape[1:-1]
print(f"PixelCNN的输入形状: {pixelcnn_input_shape}")

# 第一层是PixelCNN层。该层简单地
# 基于二维卷积层，但包含掩码。
class PixelConvLayer(layers.Layer):
    def __init__(self, mask_type, **kwargs):
        super().__init__()
        self.mask_type = mask_type
        self.conv = layers.Conv2D(**kwargs)

    def build(self, input_shape):
        # 构建conv2d层以初始化内核变量
        self.conv.build(input_shape)
        # 使用初始化的内核创建掩码
        kernel_shape = self.conv.kernel.get_shape()
        self.mask = np.zeros(shape=kernel_shape)
        self.mask[: kernel_shape[0] // 2, ...] = 1.0
        self.mask[kernel_shape[0] // 2, : kernel_shape[1] // 2, ...] = 1.0
        if self.mask_type == "B":
            self.mask[kernel_shape[0] // 2, kernel_shape[1] // 2, ...] = 1.0

    def call(self, inputs):
        self.conv.kernel.assign(self.conv.kernel * self.mask)
        return self.conv(inputs)


# 接下来，我们构建我们的残差块层。
# 这只是一个普通的残差块，但基于PixelConvLayer。
class ResidualBlock(keras.layers.Layer):
    def __init__(self, filters, **kwargs):
        super().__init__(**kwargs)
        self.conv1 = keras.layers.Conv2D(
            filters=filters, kernel_size=1, activation="relu"
        )
        self.pixel_conv = PixelConvLayer(
            mask_type="B",
            filters=filters // 2,
            kernel_size=3,
            activation="relu",
            padding="same",
        )
        self.conv2 = keras.layers.Conv2D(
            filters=filters, kernel_size=1, activation="relu"
        )

    def call(self, inputs):
        x = self.conv1(inputs)
        x = self.pixel_conv(x)
        x = self.conv2(x)
        return keras.layers.add([inputs, x])


pixelcnn_inputs = keras.Input(shape=pixelcnn_input_shape, dtype=tf.int32)
ohe = tf.one_hot(pixelcnn_inputs, vqvae_trainer.num_embeddings)
x = PixelConvLayer(
    mask_type="A", filters=128, kernel_size=7, activation="relu", padding="same"
)(ohe)

for _ in range(num_residual_blocks):
    x = ResidualBlock(filters=128)(x)

for _ in range(num_pixelcnn_layers):
    x = PixelConvLayer(
        mask_type="B",
        filters=128,
        kernel_size=1,
        strides=1,
        activation="relu",
        padding="valid",
    )(x)

out = keras.layers.Conv2D(
    filters=vqvae_trainer.num_embeddings, kernel_size=1, strides=1, padding="valid"
)(x)

pixel_cnn = keras.Model(pixelcnn_inputs, out, name="pixel_cnn")
pixel_cnn.summary()

# 生成代码本索引。
encoded_outputs = encoder.predict(x_train_scaled)
flat_enc_outputs = encoded_outputs.reshape(-1, encoded_outputs.shape[-1])
codebook_indices = quantizer.get_code_indices(flat_enc_outputs)

codebook_indices = codebook_indices.numpy().reshape(encoded_outputs.shape[:-1])
print(f"Shape of the training data for PixelCNN: {codebook_indices.shape}")

pixel_cnn.compile(
    optimizer=keras.optimizers.Adam(3e-4),
    loss=keras.losses.SparseCategoricalCrossentropy(from_logits=True),
    metrics=["accuracy"],
)
pixel_cnn.fit(
    x=codebook_indices,
    y=codebook_indices,
    batch_size=128,
    epochs=30,
    validation_split=0.1,
)

# 创建一个迷你采样模型。
inputs = layers.Input(shape=pixel_cnn.input_shape[1:])
outputs = pixel_cnn(inputs, training=False)
categorical_layer = tfp.layers.DistributionLambda(tfp.distributions.Categorical)
outputs = categorical_layer(outputs)
sampler = keras.Model(inputs, outputs)

# 创建一个空的先验数组。
batch = 10
priors = np.zeros(shape=(batch,) + (pixel_cnn.input_shape)[1:])
batch, rows, cols = priors.shape

# 逐行逐列迭代先验，因为生成必须逐像素顺序进行。
for row in range(rows):
    for col in range(cols):
        # 喂入整个数组并获取下一个像素的像素值概率。
        probs = sampler.predict(priors)
        # 使用概率选择像素值并将这些值附加到先验中。
        priors[:, row, col] = probs[:, row, col]

print(f"Prior shape: {priors.shape}")

# 执行嵌入查找。
pretrained_embeddings = quantizer.embeddings
priors_ohe = tf.one_hot(priors.astype("int32"), vqvae_trainer.num_embeddings).numpy()
quantized = tf.matmul(
    priors_ohe.astype("float32"), pretrained_embeddings, transpose_b=True
)
quantized = tf.reshape(quantized, (-1, *(encoded_outputs.shape[1:])))

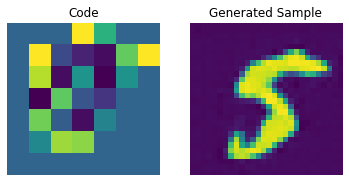

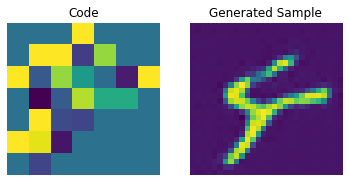

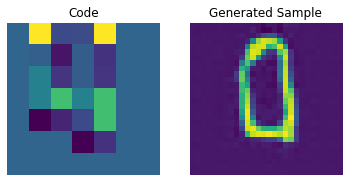

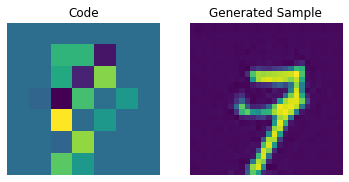

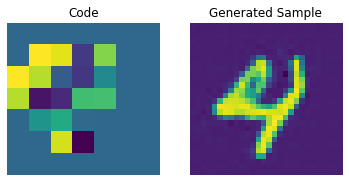

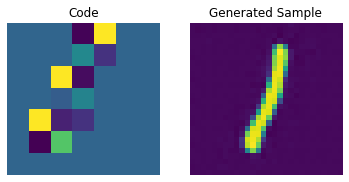

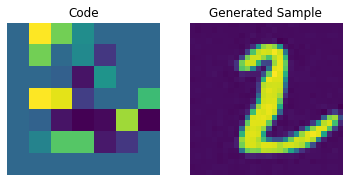

# 生成新颖图像。
decoder = vqvae_trainer.vqvae.get_layer("decoder")
generated_samples = decoder.predict(quantized)

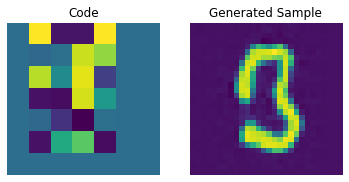

for i in range(batch):
    plt.subplot(1, 2, 1)
    plt.imshow(priors[i])
    plt.title("代码")
    plt.axis("off")

    plt.subplot(1, 2, 2)
    plt.imshow(generated_samples[i].squeeze() + 0.5)
    plt.title("生成样本")
    plt.axis("off")
    plt.show()
