Kmeans: k-均值聚类

k-means聚类的实现。

> 来自 mlxtend.cluster 的 Kmeans

概述

聚类属于无监督学习的范畴，这是机器学习的一个子领域，在实际应用中我们无法获取真实的标签。在聚类中，我们的目标是根据相似性对样本进行分组（在k均值中：欧几里得距离）。

k均值算法可以总结如下：

随机选择k个质心作为初始聚类中心。
将每个样本分配给最近的质心 $\mu(j), \; j \in {1,...,k}$。
将质心移动到被分配给它的样本的中心。
重复步骤2和3，直到聚类分配不再变化，或者达到用户定义的容忍度或最大迭代次数。

参考文献

MacQueen, J. B. (1967). 用于分类和多变量观察分析的一些方法。第五届伯克利数理统计与概率研讨会会议录。加利福尼亚大学出版社。第281–297页。MR 0214227。Zbl 0214.46201。检索于2009-04-07。

示例 1 - 三个斑点

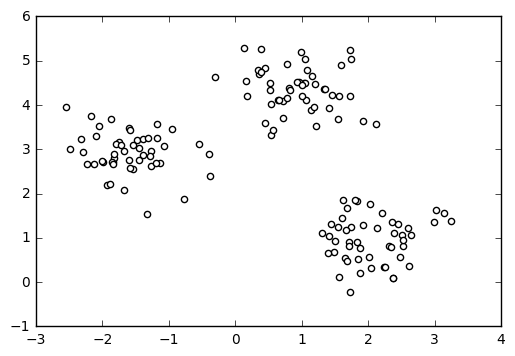

加载一些示例数据：

import matplotlib.pyplot as plt
from mlxtend.data import three_blobs_data

X, y = three_blobs_data()
plt.scatter(X[:, 0], X[:, 1], c='white')
plt.show()

png

计算聚类中心：

from mlxtend.cluster import Kmeans

km = Kmeans(k=3,
            max_iter=50,
            random_seed=1,
            print_progress=3)

km.fit(X)

print('Iterations until convergence:', km.iterations_)
print('Final centroids:\n', km.centroids_)

Iteration: 2/50 | Elapsed: 00:00:00 | ETA: 00:00:00

Iterations until convergence: 2
Final centroids:
 [[-1.5947298   2.92236966]
 [ 2.06521743  0.96137409]
 [ 0.9329651   4.35420713]]

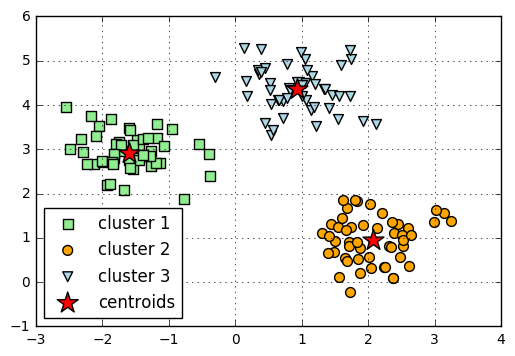

可视化聚类成员资格：

y_clust = km.predict(X)

plt.scatter(X[y_clust == 0, 0],
            X[y_clust == 0, 1],
            s=50,
            c='lightgreen',
            marker='s',
            label='cluster 1')

plt.scatter(X[y_clust == 1,0],
            X[y_clust == 1,1],
            s=50,
            c='orange',
            marker='o',
            label='cluster 2')

plt.scatter(X[y_clust == 2,0],
            X[y_clust == 2,1],
            s=50,
            c='lightblue',
            marker='v',
            label='cluster 3')


plt.scatter(km.centroids_[:,0],
            km.centroids_[:,1],
            s=250,
            marker='*',
            c='red',
            label='centroids')

plt.legend(loc='lower left',
           scatterpoints=1)
plt.grid()
plt.show()

png

API

Kmeans(k, max_iter=10, convergence_tolerance=1e-05, random_seed=None, print_progress=0)

K-means clustering class.

Added in 0.4.1dev

Parameters

k : int

Number of clusters
max_iter : int (default: 10)

Number of iterations during cluster assignment. Cluster re-assignment stops automatically when the algorithm converged.
convergence_tolerance : float (default: 1e-05)

Compares current centroids with centroids of the previous iteration using the given tolerance (a small positive float)to determine if the algorithm converged early.
random_seed : int (default: None)

Set random state for the initial centroid assignment.
print_progress : int (default: 0)

Prints progress in fitting to stderr. 0: No output 1: Iterations elapsed 2: 1 plus time elapsed 3: 2 plus estimated time until completion

Attributes

centroids_ : 2d-array, shape={k, n_features}

Feature values of the k cluster centroids.
custers_ : dictionary

The cluster assignments stored as a Python dictionary; the dictionary keys denote the cluster indeces and the items are Python lists of the sample indices that were assigned to each cluster.
iterations_ : int

Number of iterations until convergence.

Examples

For usage examples, please see https://rasbt.github.io/mlxtend/user_guide/classifier/Kmeans/

Methods

fit(X, init_params=True)

Learn model from training data.

Parameters

X : {array-like, sparse matrix}, shape = [n_samples, n_features]

Training vectors, where n_samples is the number of samples and n_features is the number of features.
init_params : bool (default: True)

Re-initializes model parameters prior to fitting. Set False to continue training with weights from a previous model fitting.

Returns

self : object

predict(X)

Predict targets from X.

Parameters

X : {array-like, sparse matrix}, shape = [n_samples, n_features]

Training vectors, where n_samples is the number of samples and n_features is the number of features.

Returns

target_values : array-like, shape = [n_samples]

Predicted target values.
