three_blobs_data: 用于分类的合成簇数据

一个将three_blobs数据集加载到NumPy数组中的函数。

# 从 mlxtend.data 导入 three_blobs_data

概述

一个包含3个二维簇的随机数据集用于聚类。

样本数量：150
建议标签 $\in$ {0, 1, 2}，分布：[50, 50, 50]

参考文献

示例 1 - 数据集概述

from mlxtend.data import three_blobs_data
X, y = three_blobs_data()

print('Dimensions: %s x %s' % (X.shape[0], X.shape[1]))

print('1st row', X[0])

Dimensions: 150 x 2
1st row [ 2.60509732  1.22529553]

import numpy as np

print('Suggested cluster labels')
print(np.unique(y))
print('Label distribution: %s' % np.bincount(y))

Suggested cluster labels
[0 1 2]
Label distribution: [50 50 50]

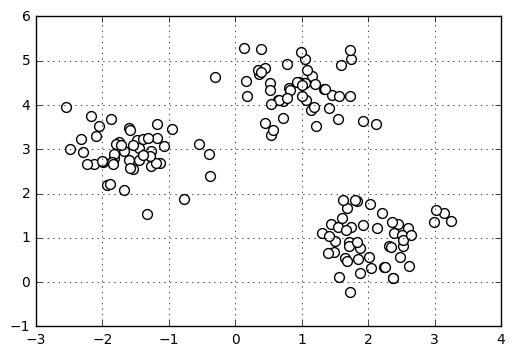

import matplotlib.pyplot as plt

plt.scatter(X[:,0], X[:,1],
            c='white',
            marker='o',
            s=50)

plt.grid()
plt.show()

png

plt.scatter(X[y == 0, 0],
            X[y == 0, 1],
            s=50,
            c='lightgreen',
            marker='s',
            label='cluster 1')

plt.scatter(X[y == 1,0],
            X[y == 1,1],
            s=50,
            c='orange',
            marker='o',
            label='cluster 2')

plt.scatter(X[y == 2,0],
            X[y == 2,1],
            s=50,
            c='lightblue',
            marker='v',
            label='cluster 3')

plt.legend(loc='lower left')
plt.grid()
plt.show()

png

API

three_blobs_data()

A random dataset of 3 2D blobs for clustering.

Number of samples : 150
Suggested labels : {0, 1, 2}, distribution: [50, 50, 50]

Returns

X, y : [n_samples, n_features], [n_cluster_labels]

X is the feature matrix with 159 samples as rows and 2 feature columns. y is a 1-dimensional array of the 3 suggested cluster labels 0, 1, 2

Examples

For usage examples, please see https://rasbt.github.io/mlxtend/user_guide/data/three_blobs_data
