层

! [ -e /content ] && pip install -Uqq fastai  # 在Colab上升级fastai

# 默认层
### 默认类级别 3

from __future__ import annotations
from fastai.imports import *
from fastai.torch_imports import *
from fastai.torch_core import *
from torch.nn.utils import weight_norm, spectral_norm

from nbdev.showdoc import *

自定义的 fastai 层以及获取它们的基本功能。

基本操作和调整大小

def module(*flds, **defaults):
    "Decorator to create an `nn.Module` using `f` as `forward` method"
    pa = [inspect.Parameter(o, inspect.Parameter.POSITIONAL_OR_KEYWORD) for o in flds]
    pb = [inspect.Parameter(k, inspect.Parameter.POSITIONAL_OR_KEYWORD, default=v)
          for k,v in defaults.items()]
    params = pa+pb
    all_flds = [*flds,*defaults.keys()]

    def _f(f):
        class c(nn.Module):
            def __init__(self, *args, **kwargs):
                super().__init__()
                for i,o in enumerate(args): kwargs[all_flds[i]] = o
                kwargs = merge(defaults,kwargs)
                for k,v in kwargs.items(): setattr(self,k,v)
            __repr__ = basic_repr(all_flds)
            forward = f
        c.__signature__ = inspect.Signature(params)
        c.__name__ = c.__qualname__ = f.__name__
        c.__doc__  = f.__doc__
        return c
    return _f

@module()
def Identity(self, x):
    "Do nothing at all"
    return x

test_eq(Identity()(1), 1)

@module('func')
def Lambda(self, x):
    "An easy way to create a pytorch layer for a simple `func`"
    return self.func(x)

def _add2(x): return x+2
tst = Lambda(_add2)
x = torch.randn(10,20)
test_eq(tst(x), x+2)
tst2 = pickle.loads(pickle.dumps(tst))
test_eq(tst2(x), x+2)
tst

Lambda(func=<function _add2>)

class PartialLambda(Lambda):
    "Layer that applies `partial(func, **kwargs)`"
    def __init__(self, func, **kwargs):
        super().__init__(partial(func, **kwargs))
        self.repr = f'{func.__name__}, {kwargs}'

    def forward(self, x): return self.func(x)
    def __repr__(self): return f'{self.__class__.__name__}({self.repr})'

def test_func(a,b=2): return a+b
tst = PartialLambda(test_func, b=5)
test_eq(tst(x), x+5)

@module(full=False)
def Flatten(self, x):
    "Flatten `x` to a single dimension, e.g. at end of a model. `full` for rank-1 tensor"
    return x.view(-1) if self.full else x.view(x.size(0), -1)  # 移除了对Tensorbase的类型转换

tst = Flatten()
x = torch.randn(10,5,4)
test_eq(tst(x).shape, [10,20])
tst = Flatten(full=True)
test_eq(tst(x).shape, [200])

@module(tensor_cls=TensorBase)
def ToTensorBase(self, x):
    "Convert x to TensorBase class"
    return self.tensor_cls(x)

ttb = ToTensorBase()
timg = TensorImage(torch.rand(1,3,32,32))
test_eq(type(ttb(timg)), TensorBase)

class View(Module):
    "Reshape `x` to `size`"
    def __init__(self, *size): self.size = size
    def forward(self, x): return x.view(self.size)

tst = View(10,5,4)
test_eq(tst(x).shape, [10,5,4])

class ResizeBatch(Module):
    "Reshape `x` to `size`, keeping batch dim the same size"
    def __init__(self, *size): self.size = size
    def forward(self, x): return x.view((x.size(0),) + self.size)

tst = ResizeBatch(5,4)
test_eq(tst(x).shape, [10,5,4])

@module()
def Debugger(self,x):
    "A module to debug inside a model."
    set_trace()
    return x

def sigmoid_range(x, low, high):
    "Sigmoid function with range `(low, high)`"
    return torch.sigmoid(x) * (high - low) + low

test = tensor([-10.,0.,10.])
assert torch.allclose(sigmoid_range(test, -1,  2), tensor([-1.,0.5, 2.]), atol=1e-4, rtol=1e-4)
assert torch.allclose(sigmoid_range(test, -5, -1), tensor([-5.,-3.,-1.]), atol=1e-4, rtol=1e-4)
assert torch.allclose(sigmoid_range(test,  2,  4), tensor([2.,  3., 4.]), atol=1e-4, rtol=1e-4)

@module('low','high')
def SigmoidRange(self, x):
    "Sigmoid module with range `(low, high)`"
    return sigmoid_range(x, self.low, self.high)

tst = SigmoidRange(-1, 2)
assert torch.allclose(tst(test), tensor([-1.,0.5, 2.]), atol=1e-4, rtol=1e-4)

池化层

class AdaptiveConcatPool1d(Module):
    "Layer that concats `AdaptiveAvgPool1d` and `AdaptiveMaxPool1d`"
    def __init__(self, size=None):
        self.size = size or 1
        self.ap = nn.AdaptiveAvgPool1d(self.size)
        self.mp = nn.AdaptiveMaxPool1d(self.size)
    def forward(self, x): return torch.cat([self.mp(x), self.ap(x)], 1)

class AdaptiveConcatPool2d(Module):
    "Layer that concats `AdaptiveAvgPool2d` and `AdaptiveMaxPool2d`"
    def __init__(self, size=None):
        self.size = size or 1
        self.ap = nn.AdaptiveAvgPool2d(self.size)
        self.mp = nn.AdaptiveMaxPool2d(self.size)
    def forward(self, x): return torch.cat([self.mp(x), self.ap(x)], 1)

如果输入为 bs x nf x h x h，则输出为 bs x 2*nf x 1 x 1（如果未传递大小）或 bs x 2*nf x size x size。

tst = AdaptiveConcatPool2d()
x = torch.randn(10,5,4,4)
test_eq(tst(x).shape, [10,10,1,1])
max1 = torch.max(x,    dim=2, keepdim=True)[0]
maxp = torch.max(max1, dim=3, keepdim=True)[0]
test_eq(tst(x)[:,:5], maxp)
test_eq(tst(x)[:,5:], x.mean(dim=[2,3], keepdim=True))
tst = AdaptiveConcatPool2d(2)
test_eq(tst(x).shape, [10,10,2,2])

class PoolType: Avg,Max,Cat = 'Avg','Max','Cat'

def adaptive_pool(pool_type):
    return nn.AdaptiveAvgPool2d if pool_type=='Avg' else nn.AdaptiveMaxPool2d if pool_type=='Max' else AdaptiveConcatPool2d

class PoolFlatten(nn.Sequential):
    "Combine `nn.AdaptiveAvgPool2d` and `Flatten`."
    def __init__(self, pool_type=PoolType.Avg): super().__init__(adaptive_pool(pool_type)(1), Flatten())

tst = PoolFlatten()
test_eq(tst(x).shape, [10,5])
test_eq(tst(x), x.mean(dim=[2,3]))

批量归一化层

NormType = Enum('NormType', 'Batch BatchZero Weight Spectral Instance InstanceZero')

def _get_norm(prefix, nf, ndim=2, zero=False, **kwargs):
    "Norm layer with `nf` features and `ndim` initialized depending on `norm_type`."
    assert 1 <= ndim <= 3
    bn = getattr(nn, f"{prefix}{ndim}d")(nf, **kwargs)
    if bn.affine:
        bn.bias.data.fill_(1e-3)
        bn.weight.data.fill_(0. if zero else 1.)
    return bn

@delegates(nn.BatchNorm2d)
def BatchNorm(nf, ndim=2, norm_type=NormType.Batch, **kwargs):
    "BatchNorm layer with `nf` features and `ndim` initialized depending on `norm_type`."
    return _get_norm('BatchNorm', nf, ndim, zero=norm_type==NormType.BatchZero, **kwargs)

@delegates(nn.InstanceNorm2d)
def InstanceNorm(nf, ndim=2, norm_type=NormType.Instance, affine=True, **kwargs):
    "InstanceNorm layer with `nf` features and `ndim` initialized depending on `norm_type`."
    return _get_norm('InstanceNorm', nf, ndim, zero=norm_type==NormType.InstanceZero, affine=affine, **kwargs)

kwargs 被传递给 nn.BatchNorm，可以是 eps、momentum、affine 和 track_running_stats。

tst = BatchNorm(15)
assert isinstance(tst, nn.BatchNorm2d)
test_eq(tst.weight, torch.ones(15))
tst = BatchNorm(15, norm_type=NormType.BatchZero)
test_eq(tst.weight, torch.zeros(15))
tst = BatchNorm(15, ndim=1)
assert isinstance(tst, nn.BatchNorm1d)
tst = BatchNorm(15, ndim=3)
assert isinstance(tst, nn.BatchNorm3d)

tst = InstanceNorm(15)
assert isinstance(tst, nn.InstanceNorm2d)
test_eq(tst.weight, torch.ones(15))
tst = InstanceNorm(15, norm_type=NormType.InstanceZero)
test_eq(tst.weight, torch.zeros(15))
tst = InstanceNorm(15, ndim=1)
assert isinstance(tst, nn.InstanceNorm1d)
tst = InstanceNorm(15, ndim=3)
assert isinstance(tst, nn.InstanceNorm3d)

如果 affine 为假，权重应该为 None

test_eq(BatchNorm(15, affine=False).weight, None)
test_eq(InstanceNorm(15, affine=False).weight, None)

class BatchNorm1dFlat(nn.BatchNorm1d):
    "`nn.BatchNorm1d`, but first flattens leading dimensions"
    def forward(self, x):
        if x.dim()==2: return super().forward(x)
        *f,l = x.shape
        x = x.contiguous().view(-1,l)
        return super().forward(x).view(*f,l)

tst = BatchNorm1dFlat(15)
x = torch.randn(32, 64, 15)
y = tst(x)
mean = x.mean(dim=[0,1])
test_close(tst.running_mean, 0*0.9 + mean*0.1)
var = (x-mean).pow(2).mean(dim=[0,1])
test_close(tst.running_var, 1*0.9 + var*0.1, eps=1e-4)
test_close(y, (x-mean)/torch.sqrt(var+1e-5) * tst.weight + tst.bias, eps=1e-4)

class LinBnDrop(nn.Sequential):
    "Module grouping `BatchNorm1d`, `Dropout` and `Linear` layers"
    def __init__(self, n_in, n_out, bn=True, p=0., act=None, lin_first=False):
        layers = [BatchNorm(n_out if lin_first else n_in, ndim=1)] if bn else []
        if p != 0: layers.append(nn.Dropout(p))
        lin = [nn.Linear(n_in, n_out, bias=not bn)]
        if act is not None: lin.append(act)
        layers = lin+layers if lin_first else layers+lin
        super().__init__(*layers)

如果bn=False，则跳过BatchNorm层，若p=0.则跳过dropout。可选择在线性层之后添加激活函数act。

tst = LinBnDrop(10, 20)
mods = list(tst.children())
test_eq(len(mods), 2)
assert isinstance(mods[0], nn.BatchNorm1d)
assert isinstance(mods[1], nn.Linear)

tst = LinBnDrop(10, 20, p=0.1)
mods = list(tst.children())
test_eq(len(mods), 3)
assert isinstance(mods[0], nn.BatchNorm1d)
assert isinstance(mods[1], nn.Dropout)
assert isinstance(mods[2], nn.Linear)

tst = LinBnDrop(10, 20, act=nn.ReLU(), lin_first=True)
mods = list(tst.children())
test_eq(len(mods), 3)
assert isinstance(mods[0], nn.Linear)
assert isinstance(mods[1], nn.ReLU)
assert isinstance(mods[2], nn.BatchNorm1d)

tst = LinBnDrop(10, 20, bn=False)
mods = list(tst.children())
test_eq(len(mods), 1)
assert isinstance(mods[0], nn.Linear)

初始化

def sigmoid(input, eps=1e-7):
    "Same as `torch.sigmoid`, plus clamping to `(eps,1-eps)"
    return input.sigmoid().clamp(eps,1-eps)

def sigmoid_(input, eps=1e-7):
    "Same as `torch.sigmoid_`, plus clamping to `(eps,1-eps)"
    return input.sigmoid_().clamp_(eps,1-eps)

from torch.nn.init import kaiming_uniform_,uniform_,xavier_uniform_,normal_

def vleaky_relu(input, inplace=True):
    "`F.leaky_relu` with 0.3 slope"
    return F.leaky_relu(input, negative_slope=0.3, inplace=inplace)

for o in F.relu,nn.ReLU,F.relu6,nn.ReLU6,F.leaky_relu,nn.LeakyReLU:
    o.__default_init__ = kaiming_uniform_

for o in F.sigmoid,nn.Sigmoid,F.tanh,nn.Tanh,sigmoid,sigmoid_:
    o.__default_init__ = xavier_uniform_

def init_default(m, func=nn.init.kaiming_normal_):
    "Initialize `m` weights with `func` and set `bias` to 0."
    if func and hasattr(m, 'weight'): func(m.weight)
    with torch.no_grad(): nested_callable(m, 'bias.fill_')(0.)
    return m

def init_linear(m, act_func=None, init='auto', bias_std=0.01):
    if getattr(m,'bias',None) is not None and bias_std is not None:
        if bias_std != 0: normal_(m.bias, 0, bias_std)
        else: m.bias.data.zero_()
    if init=='auto':
        if act_func in (F.relu_,F.leaky_relu_): init = kaiming_uniform_
        else: init = nested_callable(act_func, '__class__.__default_init__')
        if init == noop: init = getcallable(act_func, '__default_init__')
    if callable(init): init(m.weight)

卷积

def _conv_func(ndim=2, transpose=False):
    "Return the proper conv `ndim` function, potentially `transposed`."
    assert 1 <= ndim <=3
    return getattr(nn, f'Conv{"Transpose" if transpose else ""}{ndim}d')

test_eq(_conv_func(ndim=1),torch.nn.modules.conv.Conv1d)
test_eq(_conv_func(ndim=2),torch.nn.modules.conv.Conv2d)
test_eq(_conv_func(ndim=3),torch.nn.modules.conv.Conv3d)
test_eq(_conv_func(ndim=1, transpose=True),torch.nn.modules.conv.ConvTranspose1d)
test_eq(_conv_func(ndim=2, transpose=True),torch.nn.modules.conv.ConvTranspose2d)
test_eq(_conv_func(ndim=3, transpose=True),torch.nn.modules.conv.ConvTranspose3d)

defaults.activation=nn.ReLU

class ConvLayer(nn.Sequential):
    "Create a sequence of convolutional (`ni` to `nf`), ReLU (if `use_activ`) and `norm_type` layers."
    @delegates(nn.Conv2d)
    def __init__(self, ni, nf, ks=3, stride=1, padding=None, bias=None, ndim=2, norm_type=NormType.Batch, bn_1st=True,
                 act_cls=defaults.activation, transpose=False, init='auto', xtra=None, bias_std=0.01, **kwargs):
        if padding is None: padding = ((ks-1)//2 if not transpose else 0)
        bn = norm_type in (NormType.Batch, NormType.BatchZero)
        inn = norm_type in (NormType.Instance, NormType.InstanceZero)
        if bias is None: bias = not (bn or inn)
        conv_func = _conv_func(ndim, transpose=transpose)
        conv = conv_func(ni, nf, kernel_size=ks, bias=bias, stride=stride, padding=padding, **kwargs)
        act = None if act_cls is None else act_cls()
        init_linear(conv, act, init=init, bias_std=bias_std)
        if   norm_type==NormType.Weight:   conv = weight_norm(conv)
        elif norm_type==NormType.Spectral: conv = spectral_norm(conv)
        layers = [conv]
        act_bn = []
        if act is not None: act_bn.append(act)
        if bn: act_bn.append(BatchNorm(nf, norm_type=norm_type, ndim=ndim))
        if inn: act_bn.append(InstanceNorm(nf, norm_type=norm_type, ndim=ndim))
        if bn_1st: act_bn.reverse()
        layers += act_bn
        if xtra: layers.append(xtra)
        super().__init__(*layers)

卷积使用 ks（卷积核大小）、stride、padding 和 bias。如果不是转置卷积，padding 默认值为适当的值（(ks-1)//2），而 bias 默认值为 True 如果 norm_type 是 Spectral 或 Weight，如果是 Batch 或 BatchZero 则为 False。请注意，如果您不想要任何归一化，应该将 norm_type 传递为 None。

这定义了一个具有 ndim（1、2 或 3）的卷积层，如果 transpose=True，则将是一个转置卷积。act_cls 是要使用的激活函数的类（在内部实例化）。如果您不希望有激活函数，请传递 act=None。如果您想快速更改默认激活，可以更改 defaults.activation 的值。

init 用于初始化权重（偏置初始化为 0），而 xtra 是一个可选层，可以在最后添加。

tst = ConvLayer(16, 32)
mods = list(tst.children())
test_eq(len(mods), 3)
test_eq(mods[1].weight, torch.ones(32))
test_eq(mods[0].padding, (1,1))

x = torch.randn(64, 16, 8, 8)#.cuda()

#选择填充以使形状在步幅为1时保持一致
test_eq(tst(x).shape, [64,32,8,8])

#选择填充以使形状在步幅为2时减半
tst = ConvLayer(16, 32, stride=2)
test_eq(tst(x).shape, [64,32,4,4])

#但如果你愿意，你可以随时传递自己的填充物
tst = ConvLayer(16, 32, padding=0)
test_eq(tst(x).shape, [64,32,6,6])

#默认情况下，批量归一化无偏差
assert mods[0].bias is None
#但可以通过设置`bias=True`来覆盖此默认行为
tst = ConvLayer(16, 32, bias=True)
assert first(tst.children()).bias is not None
#对于没有范数或谱/权重的情形，默认偏置为True
for t in [None, NormType.Spectral, NormType.Weight]:
    tst = ConvLayer(16, 32, norm_type=t)
    assert first(tst.children()).bias is not None

#各种n维/转置操作
tst = ConvLayer(16, 32, ndim=3)
assert isinstance(list(tst.children())[0], nn.Conv3d)
tst = ConvLayer(16, 32, ndim=1, transpose=True)
assert isinstance(list(tst.children())[0], nn.ConvTranspose1d)

#无激活/泄漏
tst = ConvLayer(16, 32, ndim=3, act_cls=None)
mods = list(tst.children())
test_eq(len(mods), 2)
tst = ConvLayer(16, 32, ndim=3, act_cls=partial(nn.LeakyReLU, negative_slope=0.1))
mods = list(tst.children())
test_eq(len(mods), 3)
assert isinstance(mods[2], nn.LeakyReLU)

# #导出
# def linear(in_features, out_features, bias=True, act_cls=None, init='auto'):
#     "Linear layer followed by optional activation, with optional auto-init"
# res = nn.Linear(输入特征数, 输出特征数, 偏置=偏置)
# 如果 act_cls 存在：则实例化 act_cls
# init_linear(res, act_cls, 初始化=初始化)
# 如果 act_cls 存在：res = nn.Sequential(res, act_cls)
# 返回结果

# #导出
# @委托（ConvLayer）
# def conv1d(ni, nf, ks, stride=1, ndim=1, norm_type=None, **kwargs):
#     "Convolutional layer followed by optional activation, with optional auto-init"
# 返回卷积层（输入通道数为ni，输出通道数为nf，卷积核大小为ks，步幅为stride，维度为ndim，归一化类型为norm_type，以及其他关键字参数**kwargs）

# #导出
# @委托（ConvLayer）
# def conv2d(ni, nf, ks, stride=1, ndim=2, norm_type=None, **kwargs):
#     "Convolutional layer followed by optional activation, with optional auto-init"
# 返回卷积层（输入通道数为ni，输出通道数为nf，卷积核大小为ks，步幅为stride，维度为ndim，归一化类型为norm_type，以及其他关键字参数**kwargs）

# #导出
# @委托（ConvLayer）
# def conv3d(ni, nf, ks, stride=1, ndim=3, norm_type=None, **kwargs):
#     "Convolutional layer followed by optional activation, with optional auto-init"
# 返回卷积层（输入通道数为ni，输出通道数为nf，卷积核大小为ks，步幅为stride，维度为ndim，归一化类型为norm_type，以及其他参数**kwargs）。

def AdaptiveAvgPool(sz=1, ndim=2):
    "nn.AdaptiveAvgPool layer for `ndim`"
    assert 1 <= ndim <= 3
    return getattr(nn, f"AdaptiveAvgPool{ndim}d")(sz)

def MaxPool(ks=2, stride=None, padding=0, ndim=2, ceil_mode=False):
    "nn.MaxPool layer for `ndim`"
    assert 1 <= ndim <= 3
    return getattr(nn, f"MaxPool{ndim}d")(ks, stride=stride, padding=padding)

def AvgPool(ks=2, stride=None, padding=0, ndim=2, ceil_mode=False):
    "nn.AvgPool layer for `ndim`"
    assert 1 <= ndim <= 3
    return getattr(nn, f"AvgPool{ndim}d")(ks, stride=stride, padding=padding, ceil_mode=ceil_mode)

嵌入表示

def trunc_normal_(x, mean=0., std=1.):
    "Truncated normal initialization (approximation)"
    # 来自 https://discuss.pytorch.org/t/实现截断正态分布初始化器/4778/12
    return x.normal_().fmod_(2).mul_(std).add_(mean)

class Embedding(nn.Embedding):
    "Embedding layer with truncated normal initialization"
    def __init__(self, ni, nf, std=0.01):
        super().__init__(ni, nf)
        trunc_normal_(self.weight.data, std=std)

截断正态初始化将分布限制在一个范围内，以避免产生较大的值。对于给定的标准差 std，其界限大致为 -2*std 和 2*std。

std = 0.02
tst = Embedding(10, 30, std)
assert tst.weight.min() > -2*std
assert tst.weight.max() < 2*std
test_close(tst.weight.mean(), 0, 1e-2)
test_close(tst.weight.std(), std, 0.1)

自注意力

class SelfAttention(Module):
    "Self attention layer for `n_channels`."
    def __init__(self, n_channels):
        self.query,self.key,self.value = [self._conv(n_channels, c) for c in (n_channels//8,n_channels//8,n_channels)]
        self.gamma = nn.Parameter(tensor([0.]))

    def _conv(self,n_in,n_out):
        return ConvLayer(n_in, n_out, ks=1, ndim=1, norm_type=NormType.Spectral, act_cls=None, bias=False)

    def forward(self, x):
        #论文中的符号表示。
        size = x.size()
        x = x.view(*size[:2],-1)
        f,g,h = self.query(x),self.key(x),self.value(x)
        beta = F.softmax(torch.bmm(f.transpose(1,2), g), dim=1)
        o = self.gamma * torch.bmm(h, beta) + x
        return o.view(*size).contiguous()

自注意力层如在自注意力生成对抗网络中所介绍。

最初，对输入没有任何改变。这是通过一个可训练的参数gamma来控制的，因为我们返回的是x + gamma * out。

tst = SelfAttention(16)
x = torch.randn(32, 16, 8, 8)
test_eq(tst(x),x)

然后在训练过程中，gamma 可能会改变，因为它是一个可训练的参数。我们来看看当它获得非零值时会发生什么。

tst.gamma.data.fill_(1.)
y = tst(x)
test_eq(y.shape, [32,16,8,8])

注意力机制需要进行三次矩阵乘法（这里用1x1卷积表示）。这些乘法是在通道级别进行的（在我们的张量中是第二维），我们将特征图扁平化（这里是8x8）。与论文中一样，我们将这些乘法的结果分别记为 f、g 和 h。

q,k,v = tst.query[0].weight.data,tst.key[0].weight.data,tst.value[0].weight.data
test_eq([q.shape, k.shape, v.shape], [[2, 16, 1], [2, 16, 1], [16, 16, 1]])
f,g,h = map(lambda m: x.view(32, 16, 64).transpose(1,2) @ m.squeeze().t(), [q,k,v])
test_eq([f.shape, g.shape, h.shape], [[32,64,2], [32,64,2], [32,64,16]])

注意力层的关键部分是为特征图中的每个位置计算注意力权重（这里是8x8 = 64）。这些权重是正数，总和为1，告诉模型关注图像的某个部分。我们将 f 和 g 的转置相乘（得到大小为bs x 64 x 64的结果），然后在第一个维度上应用softmax（以获得总和为1的正数）。然后将结果与转置后的h相乘，得到大小为bs x 通道 x 64的输出，这样我们就可以将其视为与原始输入相同大小的输出。

最终结果是 x + gamma * out，正如我们之前看到的。

beta = F.softmax(torch.bmm(f, g.transpose(1,2)), dim=1)
test_eq(beta.shape, [32, 64, 64])
out = torch.bmm(h.transpose(1,2), beta)
test_eq(out.shape, [32, 16, 64])
test_close(y, x + out.view(32, 16, 8, 8), eps=1e-4)

class PooledSelfAttention2d(Module):
    "Pooled self attention layer for 2d."
    def __init__(self, n_channels):
        self.n_channels = n_channels
        self.query,self.key,self.value = [self._conv(n_channels, c) for c in (n_channels//8,n_channels//8,n_channels//2)]
        self.out   = self._conv(n_channels//2, n_channels)
        self.gamma = nn.Parameter(tensor([0.]))

    def _conv(self,n_in,n_out):
        return ConvLayer(n_in, n_out, ks=1, norm_type=NormType.Spectral, act_cls=None, bias=False)

    def forward(self, x):
        n_ftrs = x.shape[2]*x.shape[3]
        f = self.query(x).view(-1, self.n_channels//8, n_ftrs)
        g = F.max_pool2d(self.key(x),   [2,2]).view(-1, self.n_channels//8, n_ftrs//4)
        h = F.max_pool2d(self.value(x), [2,2]).view(-1, self.n_channels//2, n_ftrs//4)
        beta = F.softmax(torch.bmm(f.transpose(1, 2), g), -1)
        o = self.out(torch.bmm(h, beta.transpose(1,2)).view(-1, self.n_channels//2, x.shape[2], x.shape[3]))
        return self.gamma * o + x

在Big GAN 论文中使用的自注意力层。

它使用与SelfAttention中的相同注意力，但在计算矩阵g和h之前添加了步幅为2的最大池化：注意力作用于2x2的最大池化窗口之一，而不是整个特征图。在最终输出之前，还增加了一个矩阵乘法，最后返回gamma * out + x。

def _conv1d_spect(ni:int, no:int, ks:int=1, stride:int=1, padding:int=0, bias:bool=False):
    "Create and initialize a `nn.Conv1d` layer with spectral normalization."
    conv = nn.Conv1d(ni, no, ks, stride=stride, padding=padding, bias=bias)
    nn.init.kaiming_normal_(conv.weight)
    if bias: conv.bias.data.zero_()
    return spectral_norm(conv)

class SimpleSelfAttention(Module):
    def __init__(self, n_in:int, ks=1, sym=False):
        self.sym,self.n_in = sym,n_in
        self.conv = _conv1d_spect(n_in, n_in, ks, padding=ks//2, bias=False)
        self.gamma = nn.Parameter(tensor([0.]))

    def forward(self,x):
        if self.sym:
            c = self.conv.weight.view(self.n_in,self.n_in)
            c = (c + c.t())/2
            self.conv.weight = c.view(self.n_in,self.n_in,1)

        size = x.size()
        x = x.view(*size[:2],-1)

        convx = self.conv(x)
        xxT = torch.bmm(x,x.permute(0,2,1).contiguous())
        o = torch.bmm(xxT, convx)
        o = self.gamma * o + x
        return o.view(*size).contiguous()

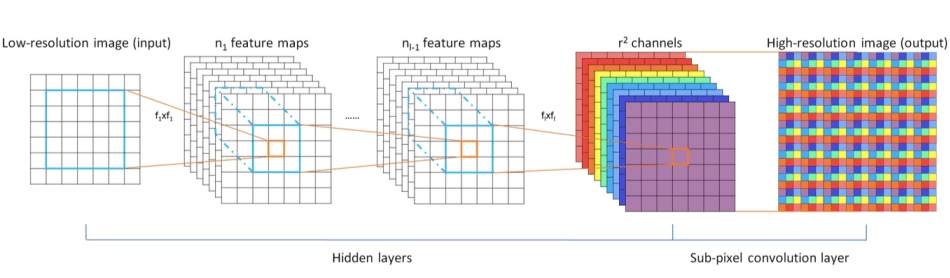

像素重排 (PixelShuffle)

PixelShuffle 在这篇文章中引入，以避免在放大图像时出现棋盘效应。如果我们希望输出具有 ch_out 个滤波器，我们使用一个具有 ch_out * (r**2) 个滤波器的卷积，其中 r 是上采样因子。然后我们按照下面的图片重新组织这些滤波器：

def icnr_init(x, scale=2, init=nn.init.kaiming_normal_):
    "ICNR init of `x`, with `scale` and `init` function"
    ni,nf,h,w = x.shape
    ni2 = int(ni/(scale**2))
    k = init(x.new_zeros([ni2,nf,h,w])).transpose(0, 1)
    k = k.contiguous().view(ni2, nf, -1)
    k = k.repeat(1, 1, scale**2)
    return k.contiguous().view([nf,ni,h,w]).transpose(0, 1)

ICNR 初始化是在 这篇文章 中提出的。它建议对将在 PixelShuffle 中使用的卷积进行初始化，以使得每个 r**2 通道获得相同的权重（这样在上面的图片中，3x3 窗口中的 9 种颜色最初是相同的）。

Note

这是在第一维度上完成的，因为 PyTorch 以这种格式存储卷积层的权重：ch_out x ch_in x ks x ks。

tst = torch.randn(16*4, 32, 1, 1)
tst = icnr_init(tst)
for i in range(0,16*4,4):
    test_eq(tst[i],tst[i+1])
    test_eq(tst[i],tst[i+2])
    test_eq(tst[i],tst[i+3])

class PixelShuffle_ICNR(nn.Sequential):
    "Upsample by `scale` from `ni` filters to `nf` (default `ni`), using `nn.PixelShuffle`."
    def __init__(self, ni, nf=None, scale=2, blur=False, norm_type=NormType.Weight, act_cls=defaults.activation):
        super().__init__()
        nf = ifnone(nf, ni)
        layers = [ConvLayer(ni, nf*(scale**2), ks=1, norm_type=norm_type, act_cls=act_cls, bias_std=0),
                  nn.PixelShuffle(scale)]
        if norm_type == NormType.Weight:
            layers[0][0].weight_v.data.copy_(icnr_init(layers[0][0].weight_v.data))
            layers[0][0].weight_g.data.copy_(((layers[0][0].weight_v.data**2).sum(dim=[1,2,3])**0.5)[:,None,None,None])
        else:
            layers[0][0].weight.data.copy_(icnr_init(layers[0][0].weight.data))
        if blur: layers += [nn.ReplicationPad2d((1,0,1,0)), nn.AvgPool2d(2, stride=1)]
        super().__init__(*layers)

卷积层使用icnr_init初始化，并传入act_cls和norm_type（在我们的实验中，权重归一化的默认值似乎是超分辨率问题的最佳选择）。

blur选项源于使用卷积神经网络消除任何棋盘伪影的超分辨率，作者在其中添加了一点模糊，以完全消除棋盘伪影。

psfl = PixelShuffle_ICNR(16)
x = torch.randn(64, 16, 8, 8)
y = psfl(x)
test_eq(y.shape, [64, 16, 16, 16])
#ICNR初始化使得每个2x2窗口（步长为2）内的元素相同
for i in range(0,16,2):
    for j in range(0,16,2):
        test_eq(y[:,:,i,j],y[:,:,i+1,j])
        test_eq(y[:,:,i,j],y[:,:,i  ,j+1])
        test_eq(y[:,:,i,j],y[:,:,i+1,j+1])

psfl = PixelShuffle_ICNR(16, norm_type=None)
x = torch.randn(64, 16, 8, 8)
y = psfl(x)
test_eq(y.shape, [64, 16, 16, 16])
#ICNR初始化使得每个2x2窗口（步长为2）内的元素相同
for i in range(0,16,2):
    for j in range(0,16,2):
        test_eq(y[:,:,i,j],y[:,:,i+1,j])
        test_eq(y[:,:,i,j],y[:,:,i  ,j+1])
        test_eq(y[:,:,i,j],y[:,:,i+1,j+1])

psfl = PixelShuffle_ICNR(16, norm_type=NormType.Spectral)
x = torch.randn(64, 16, 8, 8)
y = psfl(x)
test_eq(y.shape, [64, 16, 16, 16])
#ICNR初始化使得每个2x2窗口（步长为2）具有相同的元素
for i in range(0,16,2):
    for j in range(0,16,2):
        test_eq(y[:,:,i,j],y[:,:,i+1,j])
        test_eq(y[:,:,i,j],y[:,:,i  ,j+1])
        test_eq(y[:,:,i,j],y[:,:,i+1,j+1])

顺序扩展

def sequential(*args):
    "Create an `nn.Sequential`, wrapping items with `Lambda` if needed"
    if len(args) != 1 or not isinstance(args[0], OrderedDict):
        args = list(args)
        for i,o in enumerate(args):
            if not isinstance(o,nn.Module): args[i] = Lambda(o)
    return nn.Sequential(*args)

class SequentialEx(Module):
    "Like `nn.Sequential`, but with ModuleList semantics, and can access module input"
    def __init__(self, *layers): self.layers = nn.ModuleList(layers)

    def forward(self, x):
        res = x
        for l in self.layers:
            res.orig = x
            nres = l(res)
            # 我们必须移除res.orig，以避免悬挂引用，从而防止内存泄漏。
            res.orig, nres.orig = None, None
            res = nres
        return res

    def __getitem__(self,i): return self.layers[i]
    def append(self,l):      return self.layers.append(l)
    def extend(self,l):      return self.layers.extend(l)
    def insert(self,i,l):    return self.layers.insert(i,l)

这对于以顺序方式编写需要记住输入的层（如resnet块）是有用的。

class MergeLayer(Module):
    "Merge a shortcut with the result of the module by adding them or concatenating them if `dense=True`."
    def __init__(self, dense:bool=False): self.dense=dense
    def forward(self, x): return torch.cat([x,x.orig], dim=1) if self.dense else (x+x.orig)

res_block = SequentialEx(ConvLayer(16, 16), ConvLayer(16,16))
res_block.append(MergeLayer()) # 只是为了测试追加 - 通常它会在初始参数中
x = torch.randn(32, 16, 8, 8)
y = res_block(x)
test_eq(y.shape, [32, 16, 8, 8])
test_eq(y, x + res_block[1](res_block[0](x)))

x = TensorBase(torch.randn(32, 16, 8, 8))
y = res_block(x)
test_is(y.orig, None)

连接

相当于 keras.layers.Concatenate，它将在给定维度（默认为滤波器维度）上连接 ModuleList 的输出。

::: {#cell-119 .cell 0=‘e’ 1=‘x’ 2=‘p’ 3=‘o’ 4=‘r’ 5=‘t’}

class Cat(nn.ModuleList):
    "Concatenate layers outputs over a given dim"
    def __init__(self, layers, dim=1):
        self.dim=dim
        super().__init__(layers)
    def forward(self, x): return torch.cat([l(x) for l in self], dim=self.dim)

:::

layers = [ConvLayer(2,4), ConvLayer(2,4), ConvLayer(2,4)]
x = torch.rand(1,2,8,8)
cat = Cat(layers)
test_eq(cat(x).shape, [1,12,8,8])
test_eq(cat(x), torch.cat([l(x) for l in layers], dim=1))

可直接使用的模型

class SimpleCNN(nn.Sequential):
    "Create a simple CNN with `filters`."
    def __init__(self, filters, kernel_szs=None, strides=None, bn=True):
        nl = len(filters)-1
        kernel_szs = ifnone(kernel_szs, [3]*nl)
        strides    = ifnone(strides   , [2]*nl)
        layers = [ConvLayer(filters[i], filters[i+1], kernel_szs[i], stride=strides[i],
                  norm_type=(NormType.Batch if bn and i<nl-1 else None)) for i in range(nl)]
        layers.append(PoolFlatten())
        super().__init__(*layers)

该模型是从 (filters[0],filters[1]) 到 (filters[n-2],filters[n-1]) 的一系列卷积层（如果 n 是 filters 列表的长度），后面跟着一个 PoolFlatten。kernel_szs 和 strides 默认值为一个由3组成的列表和一个由2组成的列表。如果 bn=True，卷积层将是 conv-relu-batchnorm 的连续层；否则为 conv-relu。

tst = SimpleCNN([8,16,32])
mods = list(tst.children())
test_eq(len(mods), 3)
test_eq([[m[0].in_channels, m[0].out_channels] for m in mods[:2]], [[8,16], [16,32]])

测试内核大小

tst = SimpleCNN([8,16,32], kernel_szs=[1,3])
mods = list(tst.children())
test_eq([m[0].kernel_size for m in mods[:2]], [(1,1), (3,3)])

测试步幅

tst = SimpleCNN([8,16,32], strides=[1,2])
mods = list(tst.children())
test_eq([m[0].stride for m in mods[:2]], [(1,1),(2,2)])

class ProdLayer(Module):
    "Merge a shortcut with the result of the module by multiplying them."
    def forward(self, x): return x * x.orig

inplace_relu = partial(nn.ReLU, inplace=True)

def SEModule(ch, reduction, act_cls=defaults.activation):
    nf = math.ceil(ch//reduction/8)*8
    return SequentialEx(nn.AdaptiveAvgPool2d(1),
                        ConvLayer(ch, nf, ks=1, norm_type=None, act_cls=act_cls),
                        ConvLayer(nf, ch, ks=1, norm_type=None, act_cls=nn.Sigmoid),
                        ProdLayer())

class ResBlock(Module):
    "Resnet block from `ni` to `nh` with `stride`"
    @delegates(ConvLayer.__init__)
    def __init__(self, expansion, ni, nf, stride=1, groups=1, reduction=None, nh1=None, nh2=None, dw=False, g2=1,
                 sa=False, sym=False, norm_type=NormType.Batch, act_cls=defaults.activation, ndim=2, ks=3,
                 pool=AvgPool, pool_first=True, **kwargs):
        norm2 = (NormType.BatchZero if norm_type==NormType.Batch else
                 NormType.InstanceZero if norm_type==NormType.Instance else norm_type)
        if nh2 is None: nh2 = nf
        if nh1 is None: nh1 = nh2
        nf,ni = nf*expansion,ni*expansion
        k0 = dict(norm_type=norm_type, act_cls=act_cls, ndim=ndim, **kwargs)
        k1 = dict(norm_type=norm2, act_cls=None, ndim=ndim, **kwargs)
        convpath  = [ConvLayer(ni,  nh2, ks, stride=stride, groups=ni if dw else groups, **k0),
                     ConvLayer(nh2,  nf, ks, groups=g2, **k1)
        ] if expansion == 1 else [
                     ConvLayer(ni,  nh1, 1, **k0),
                     ConvLayer(nh1, nh2, ks, stride=stride, groups=nh1 if dw else groups, **k0),
                     ConvLayer(nh2,  nf, 1, groups=g2, **k1)]
        if reduction: convpath.append(SEModule(nf, reduction=reduction, act_cls=act_cls))
        if sa: convpath.append(SimpleSelfAttention(nf,ks=1,sym=sym))
        self.convpath = nn.Sequential(*convpath)
        idpath = []
        if ni!=nf: idpath.append(ConvLayer(ni, nf, 1, act_cls=None, ndim=ndim, **kwargs))
        if stride!=1: idpath.insert((1,0)[pool_first], pool(stride, ndim=ndim, ceil_mode=True))
        self.idpath = nn.Sequential(*idpath)
        self.act = defaults.activation(inplace=True) if act_cls is defaults.activation else act_cls()

    def forward(self, x): return self.act(self.convpath(x) + self.idpath(x))

这是一个resnet块（正常或瓶颈，取决于expansion，正常块为1，传统瓶颈为4），实现了来自Bag of Tricks for Image Classification with Convolutional Neural Networks的调整。特别地，最后一个batchnorm层（如果选择了norm_type）的权重（或gamma）初始化为零，以促进从网络开始到结束的流动。它还实现了可选的Squeeze and Excitation和分组卷积，用于ResNeXT和类似模型（使用dw=True进行深度卷积）。

kwargs与norm_type一起传递给ConvLayer。

def SEBlock(expansion, ni, nf, groups=1, reduction=16, stride=1, **kwargs):
    return ResBlock(expansion, ni, nf, stride=stride, groups=groups, reduction=reduction, nh1=nf*2, nh2=nf*expansion, **kwargs)

def SEResNeXtBlock(expansion, ni, nf, groups=32, reduction=16, stride=1, base_width=4, **kwargs):
    w = math.floor(nf * (base_width / 64)) * groups
    return ResBlock(expansion, ni, nf, stride=stride, groups=groups, reduction=reduction, nh2=w, **kwargs)

def SeparableBlock(expansion, ni, nf, reduction=16, stride=1, base_width=4, **kwargs):
    return ResBlock(expansion, ni, nf, stride=stride, reduction=reduction, nh2=nf*2, dw=True, **kwargs)

时间分布层

等价于 Keras 的 TimeDistributed 层，能够在一个轴上计算 PyTorch 的 Module。

def _stack_tups(tuples, stack_dim=1):
    "Stack tuple of tensors along `stack_dim`"
    return tuple(torch.stack([t[i] for t in tuples], dim=stack_dim) for i in range_of(tuples[0]))

class TimeDistributed(Module):
    "Applies `module` over `tdim` identically for each step, use `low_mem` to compute one at a time."
    def __init__(self, module, low_mem=False, tdim=1):
        store_attr()

    def forward(self, *tensors, **kwargs):
        "input x with shape:(bs,seq_len,channels,width,height)"
        if self.low_mem or self.tdim!=1:
            return self.low_mem_forward(*tensors, **kwargs)
        else:
            #仅支持tdim=1
            inp_shape = tensors[0].shape
            bs, seq_len = inp_shape[0], inp_shape[1]
            out = self.module(*[x.view(bs*seq_len, *x.shape[2:]) for x in tensors], **kwargs)
        return self.format_output(out, bs, seq_len)

    def low_mem_forward(self, *tensors, **kwargs):
        "input x with shape:(bs,seq_len,channels,width,height)"
        seq_len = tensors[0].shape[self.tdim]
        args_split = [torch.unbind(x, dim=self.tdim) for x in tensors]
        out = []
        for i in range(seq_len):
            out.append(self.module(*[args[i] for args in args_split]), **kwargs)
        if isinstance(out[0], tuple):
            return _stack_tups(out, stack_dim=self.tdim)
        return torch.stack(out, dim=self.tdim)

    def format_output(self, out, bs, seq_len):
        "unstack from batchsize outputs"
        if isinstance(out, tuple):
            return tuple(out_i.view(bs, seq_len, *out_i.shape[1:]) for out_i in out)
        return out.view(bs, seq_len,*out.shape[1:])

    def __repr__(self):
        return f'TimeDistributed({self.module})'

bs, seq_len = 2, 5
x, y = torch.rand(bs,seq_len,3,2,2), torch.rand(bs,seq_len,3,2,2)

tconv = TimeDistributed(nn.Conv2d(3,4,1))
test_eq(tconv(x).shape, (2,5,4,2,2))
tconv.low_mem=True
test_eq(tconv(x).shape, (2,5,4,2,2))

class Mod(Module):
    def __init__(self):
        self.conv = nn.Conv2d(3,4,1)
    def forward(self, x, y):
        return self.conv(x) + self.conv(y)
tmod = TimeDistributed(Mod())

out = tmod(x,y)
test_eq(out.shape, (2,5,4,2,2))
tmod.low_mem=True
out_low_mem = tmod(x,y)
test_eq(out_low_mem.shape, (2,5,4,2,2))
test_eq(out, out_low_mem)

class Mod2(Module):
    def __init__(self):
        self.conv = nn.Conv2d(3,4,1)
    def forward(self, x, y):
        return self.conv(x), self.conv(y)
tmod2 = TimeDistributed(Mod2())

out = tmod2(x,y)
test_eq(len(out), 2)
test_eq(out[0].shape, (2,5,4,2,2))
tmod2.low_mem=True
out_low_mem = tmod2(x,y)
test_eq(out_low_mem[0].shape, (2,5,4,2,2))
test_eq(out, out_low_mem)

show_doc(TimeDistributed)

class TimeDistributed[source]

TimeDistributed(module, low_mem=False, tdim=1) :: Module

Applies module over tdim identically for each step, use low_mem to compute one at a time.

该模块相当于Keras TimeDistributed Layer。这个包装器允许将一个层应用于输入的每个时间切片。默认情况下，时间轴（tdim）假定是第一个（即批次大小之后的那个）。典型用法是使用图像编码器对图像序列进行编码。

TimeDistributed的forward函数支持*args和**kkwargs，但只有args会被拆分并独立地传递给每个时间步的底层模块，kwargs将原样传递。这在模块需要多个参数作为输入时非常有用，这样，您可以将所有需要拆分的张量放入args中，而将不需要拆分的其他参数放入kwargs中。

该模块对内存要求较高，因为它会尝试在批次维度上同时传递多个时间步。如果出现内存不足的错误，请首先尝试通过时间步数减少批次大小。

from fastai.vision.all import *

encoder = create_body(resnet18())

一个resnet18将编码一个512通道的特征图。高度和宽度将被缩小为32分之一。

time_resnet = TimeDistributed(encoder)

一个合成批次包含2个图像序列，每个序列的长度为5。(批量大小, 序列长度, 通道数, 宽度, 高度)

image_sequence = torch.rand(2, 5, 3, 64, 64)

time_resnet(image_sequence).shape

torch.Size([2, 5, 512, 2, 2])

通过这种方式，可以在特征空间中对一系列图像进行编码。 还有一个 low_mem_forward，它将一次传递一张图像，以减少 GPU 内存消耗。

time_resnet.low_mem_forward(image_sequence).shape

torch.Size([2, 5, 512, 2, 2])

Swish 和 Mish

from torch.jit import script

@script
def _swish_jit_fwd(x): return x.mul(torch.sigmoid(x))

@script
def _swish_jit_bwd(x, grad_output):
    x_sigmoid = torch.sigmoid(x)
    return grad_output * (x_sigmoid * (1 + x * (1 - x_sigmoid)))

class _SwishJitAutoFn(torch.autograd.Function):
    @staticmethod
    def forward(ctx, x):
        ctx.save_for_backward(x)
        return _swish_jit_fwd(x)

    @staticmethod
    def backward(ctx, grad_output):
        x = ctx.saved_variables[0]
        return _swish_jit_bwd(x, grad_output)

def swish(x, inplace=False): F.silu(x, inplace=inplace)

class SwishJit(Module):
    def forward(self, x): return _SwishJitAutoFn.apply(x)

@script
def _mish_jit_fwd(x): return x.mul(torch.tanh(F.softplus(x)))

@script
def _mish_jit_bwd(x, grad_output):
    x_sigmoid = torch.sigmoid(x)
    x_tanh_sp = F.softplus(x).tanh()
    return grad_output.mul(x_tanh_sp + x * x_sigmoid * (1 - x_tanh_sp * x_tanh_sp))

class MishJitAutoFn(torch.autograd.Function):
    @staticmethod
    def forward(ctx, x):
        ctx.save_for_backward(x)
        return _mish_jit_fwd(x)

    @staticmethod
    def backward(ctx, grad_output):
        x = ctx.saved_variables[0]
        return _mish_jit_bwd(x, grad_output)

def mish(x, inplace=False): return F.mish(x, inplace=inplace)

class MishJit(Module):
    def forward(self, x): return MishJitAutoFn.apply(x)

Mish = nn.Mish
Swish = nn.SiLU

for o in swish,Swish,SwishJit,mish,Mish,MishJit: o.__default_init__ = kaiming_uniform_

子模块的辅助函数

获取给定模型的所有参数列表很简单。当您想要获取所有子模块（如线性/卷积层）而不忘记独立参数时，以下类可以将它们包装在虚拟模块中。

class ParameterModule(Module):
    "Register a lone parameter `p` in a module."
    def __init__(self, p): self.val = p
    def forward(self, x): return x

def children_and_parameters(m):
    "Return the children of `m` and its direct parameters not registered in modules."
    children = list(m.children())
    children_p = sum([[id(p) for p in c.parameters()] for c in m.children()],[])
    for p in m.parameters():
        if id(p) not in children_p: children.append(ParameterModule(p))
    return children

class TstModule(Module):
    def __init__(self): self.a,self.lin = nn.Parameter(torch.randn(1)),nn.Linear(5,10)

tst = TstModule()
children = children_and_parameters(tst)
test_eq(len(children), 2)
test_eq(children[0], tst.lin)
assert isinstance(children[1], ParameterModule)
test_eq(children[1].val, tst.a)

def has_children(m):
    try: next(m.children())
    except StopIteration: return False
    return True

class A(Module): pass
assert not has_children(A())
assert has_children(TstModule())

def flatten_model(m):
    "Return the list of all submodules and parameters of `m`"
    return sum(map(flatten_model,children_and_parameters(m)),[]) if has_children(m) else [m]

tst = nn.Sequential(TstModule(), TstModule())
children = flatten_model(tst)
test_eq(len(children), 4)
assert isinstance(children[1], ParameterModule)
assert isinstance(children[3], ParameterModule)

class NoneReduce():
    "A context manager to evaluate `loss_func` with none reduce."
    def __init__(self, loss_func): self.loss_func,self.old_red = loss_func,None

    def __enter__(self):
        if hasattr(self.loss_func, 'reduction'):
            self.old_red = self.loss_func.reduction
            self.loss_func.reduction = 'none'
            return self.loss_func
        else: return partial(self.loss_func, reduction='none')

    def __exit__(self, type, value, traceback):
        if self.old_red is not None: self.loss_func.reduction = self.old_red

x,y = torch.randn(5),torch.randn(5)
loss_fn = nn.MSELoss()
with NoneReduce(loss_fn) as loss_func:
    loss = loss_func(x,y)
test_eq(loss.shape, [5])
test_eq(loss_fn.reduction, 'mean')

loss_fn = F.mse_loss
with NoneReduce(loss_fn) as loss_func:
    loss = loss_func(x,y)
test_eq(loss.shape, [5])
test_eq(loss_fn, F.mse_loss)

def in_channels(m):
    "Return the shape of the first weight layer in `m`."
    try: return next(l.weight.shape[1] for l in flatten_model(m) if nested_attr(l,'weight.ndim',-1)==4)
    except StopIteration as e: e.args = ["No weight layer"]; raise

test_eq(in_channels(nn.Sequential(nn.Conv2d(5,4,3), nn.Conv2d(4,3,3))), 5)
test_eq(in_channels(nn.Sequential(nn.AvgPool2d(4), nn.Conv2d(4,3,3))), 4)
test_eq(in_channels(nn.Sequential(BatchNorm(4), nn.Conv2d(4,3,3))), 4)
test_eq(in_channels(nn.Sequential(InstanceNorm(4), nn.Conv2d(4,3,3))), 4)
test_eq(in_channels(nn.Sequential(InstanceNorm(4, affine=False), nn.Conv2d(4,3,3))), 4)
test_fail(lambda : in_channels(nn.Sequential(nn.AvgPool2d(4))))

导出 -

from nbdev import *
nbdev_export()

Converted 00_torch_core.ipynb.
Converted 01_layers.ipynb.
Converted 01a_losses.ipynb.
Converted 02_data.load.ipynb.
Converted 03_data.core.ipynb.
Converted 04_data.external.ipynb.
Converted 05_data.transforms.ipynb.
Converted 06_data.block.ipynb.
Converted 07_vision.core.ipynb.
Converted 08_vision.data.ipynb.
Converted 09_vision.augment.ipynb.
Converted 09b_vision.utils.ipynb.
Converted 09c_vision.widgets.ipynb.
Converted 10_tutorial.pets.ipynb.
Converted 10b_tutorial.albumentations.ipynb.
Converted 11_vision.models.xresnet.ipynb.
Converted 12_optimizer.ipynb.
Converted 13_callback.core.ipynb.
Converted 13a_learner.ipynb.
Converted 13b_metrics.ipynb.
Converted 14_callback.schedule.ipynb.
Converted 14a_callback.data.ipynb.
Converted 15_callback.hook.ipynb.
Converted 15a_vision.models.unet.ipynb.
Converted 16_callback.progress.ipynb.
Converted 17_callback.tracker.ipynb.
Converted 18_callback.fp16.ipynb.
Converted 18a_callback.training.ipynb.
Converted 18b_callback.preds.ipynb.
Converted 19_callback.mixup.ipynb.
Converted 20_interpret.ipynb.
Converted 20a_distributed.ipynb.
Converted 20b_tutorial.distributed.ipynb.
Converted 21_vision.learner.ipynb.
Converted 22_tutorial.imagenette.ipynb.
Converted 23_tutorial.vision.ipynb.
Converted 24_tutorial.image_sequence.ipynb.
Converted 24_tutorial.siamese.ipynb.
Converted 24_vision.gan.ipynb.
Converted 30_text.core.ipynb.
Converted 31_text.data.ipynb.
Converted 32_text.models.awdlstm.ipynb.
Converted 33_text.models.core.ipynb.
Converted 34_callback.rnn.ipynb.
Converted 35_tutorial.wikitext.ipynb.
Converted 37_text.learner.ipynb.
Converted 38_tutorial.text.ipynb.
Converted 39_tutorial.transformers.ipynb.
Converted 40_tabular.core.ipynb.
Converted 41_tabular.data.ipynb.
Converted 42_tabular.model.ipynb.
Converted 43_tabular.learner.ipynb.
Converted 44_tutorial.tabular.ipynb.
Converted 45_collab.ipynb.
Converted 46_tutorial.collab.ipynb.
Converted 50_tutorial.datablock.ipynb.
Converted 60_medical.imaging.ipynb.
Converted 61_tutorial.medical_imaging.ipynb.
Converted 65_medical.text.ipynb.
Converted 70_callback.wandb.ipynb.
Converted 70a_callback.tensorboard.ipynb.
Converted 70b_callback.neptune.ipynb.
Converted 70c_callback.captum.ipynb.
Converted 70d_callback.comet.ipynb.
Converted 74_huggingface.ipynb.
Converted 97_test_utils.ipynb.
Converted 99_pytorch_doc.ipynb.
Converted dev-setup.ipynb.
Converted app_examples.ipynb.
Converted camvid.ipynb.
Converted distributed_app_examples.ipynb.
Converted migrating_catalyst.ipynb.
Converted migrating_ignite.ipynb.
Converted migrating_lightning.ipynb.
Converted migrating_pytorch.ipynb.
Converted migrating_pytorch_verbose.ipynb.
Converted ulmfit.ipynb.
Converted index.ipynb.
Converted quick_start.ipynb.
Converted tutorial.ipynb.
